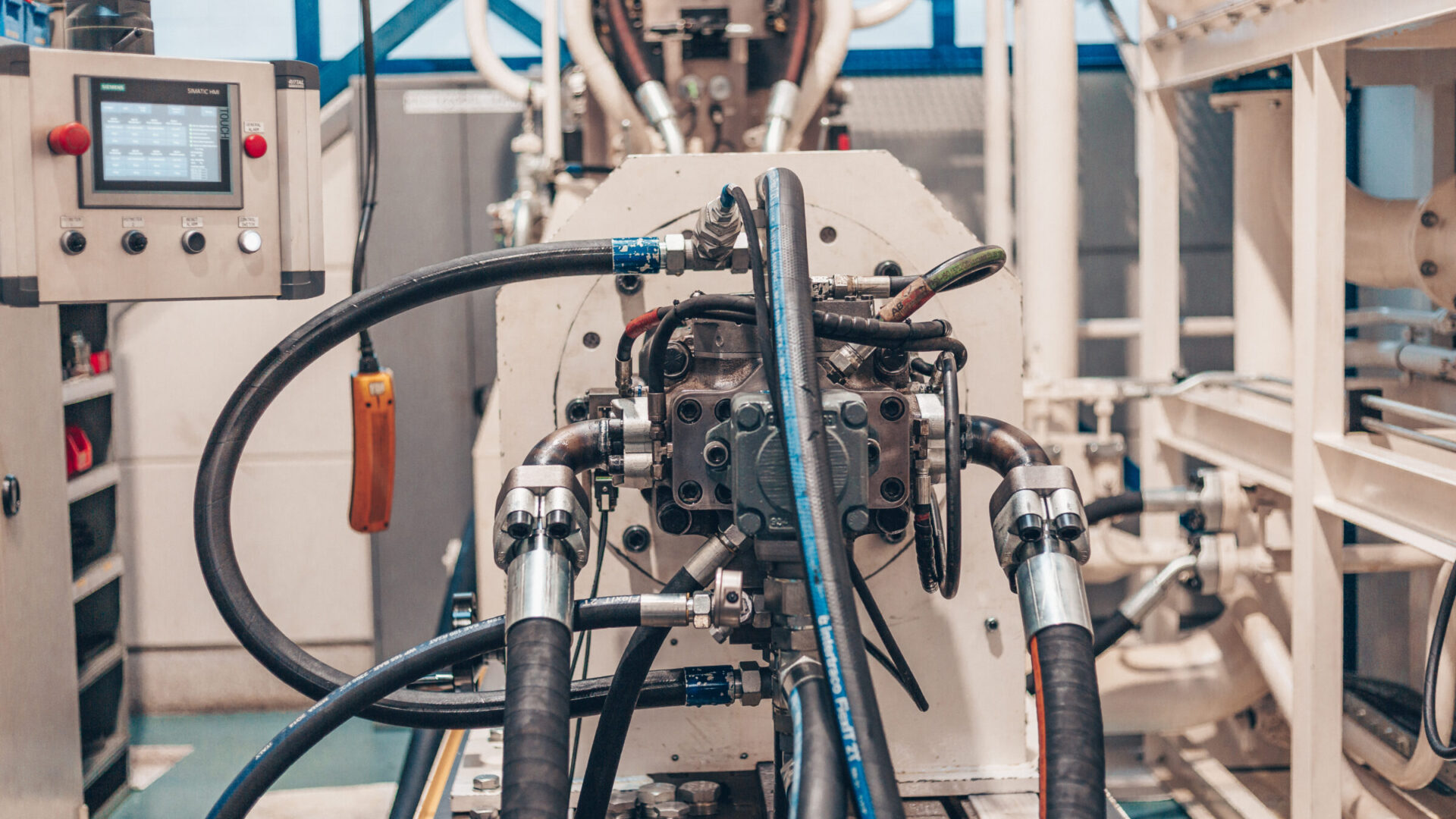

Everything we overhaul on pumps and motors is tested on the test bench for efficiency and functionality. We can test pumps of almost any brand on our test bench.

The energy released during testing is recovered. The oil flow from the test object goes back to the test bench pump and can be reused. As a result, the test bench uses up to 70% less energy compared to current test benches. An additional advantage is that larger pumps can be tested with the same installed power.

Dynamische testbank

Extensive testing possibilities

The test bench has a maximum test pressure of 350 bar and a maximum test flow of 800 l/min, which results in a maximum axial power of 438 kW. The maximum speed of the test axis is 2500 rpm. This makes the test bench suitable for testing both large and small powered test objects.

Dynamische testbank

Mechanical and volumetric efficiency

The test bench is equipped with a torque measurement in the axis. This makes it possible to measure the mechanical efficiency of pumps. It is also possible to test hydraulic motors dynamically. Both the mechanical and volumetric efficiency can be determined in this way.

Dynamische testbank

Control room

At Hydrauvision, we pay a lot of attention to working safely. For this reason, our test bench is operated from a control room. The service engineer is located behind safety glass and has a clear view of the test object.

Would you like to learn more about the possibilities of our test bench? Contact us now.
