HP45E DNV

HydrauPack 45E DNV

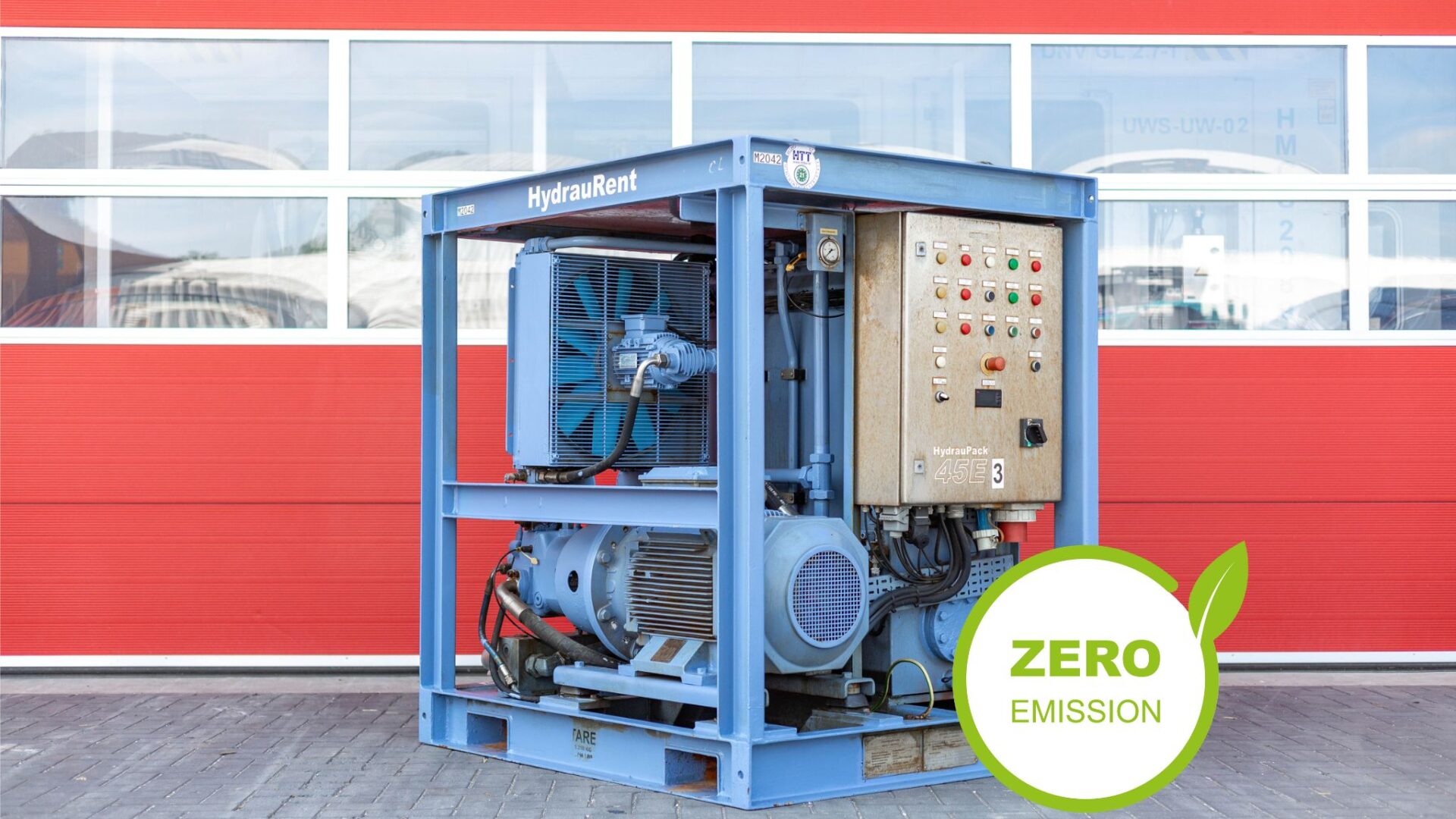

Stackable electric-driven Hydraulic Power Unit with a main power of 45 kW @ 400VAC-50Hz or 53kW @ 440VAC-60Hz. The HydrauPack 45E can be combined with one or more other HydrauPack 45E units in order to obtain a higher output flow. The HydrauPack 45E can also be combined with an extra tank, the HydrauSupport 1000T, to obtain a higher oil tank volume. The HydrauPack 45E is assembled according the DNV rules 2.7-1 and EN 12079 including rigging and certified by Lloyd’s Register. The container is provided with both 4 lifting points and integrated forklift-trays to ensure easy handling.

Benefits

  • Open hydraulic circuit with pressure and load sense control
  • Connection for electric remote control by Renter
  • Certified by Lloyd’s Register according to EN 12079
  • Offshore certified by Lloyd’s Register acc. DNV 2.7-1
  • Flushing connection for separate low pressure flushing
  • Integrated hydraulic oil circulation cooler
  • Emergency stop circuit
