The project

In this project, 8 foundation piles were installed to anchor a Tension Leg Platform at a water depth of 540 meters.

Our approach

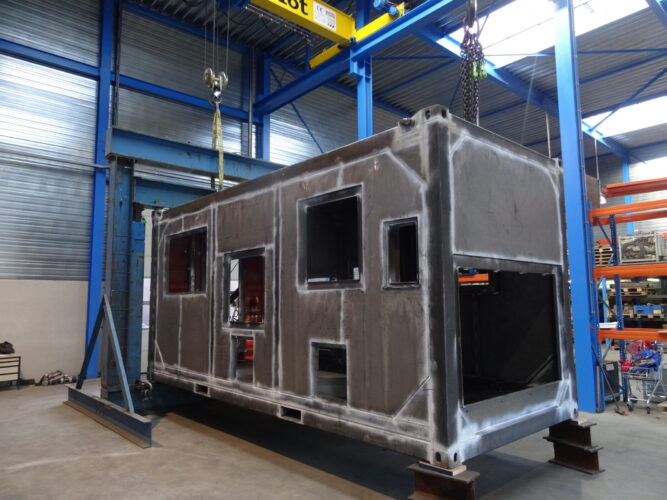

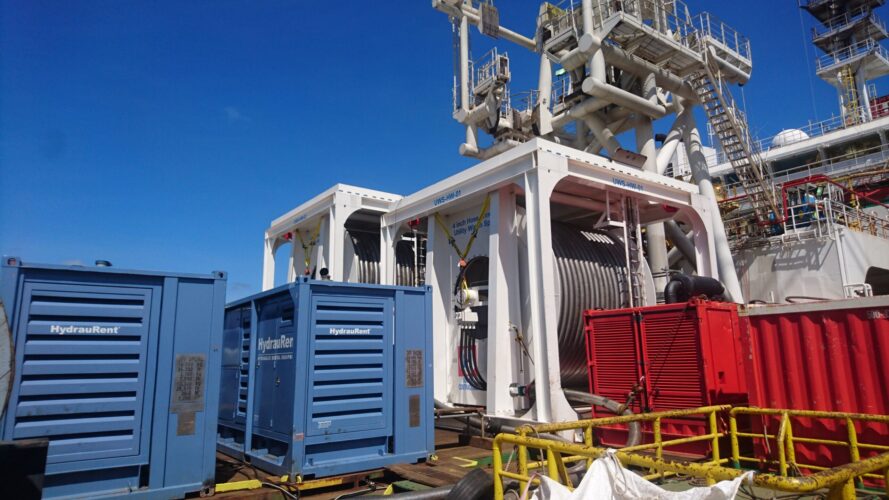

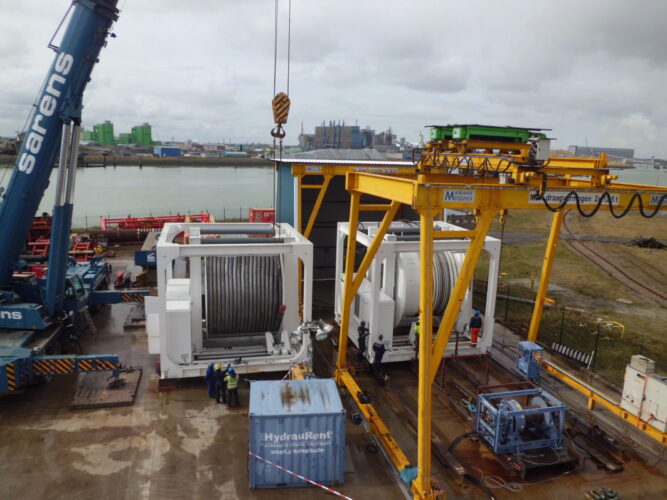

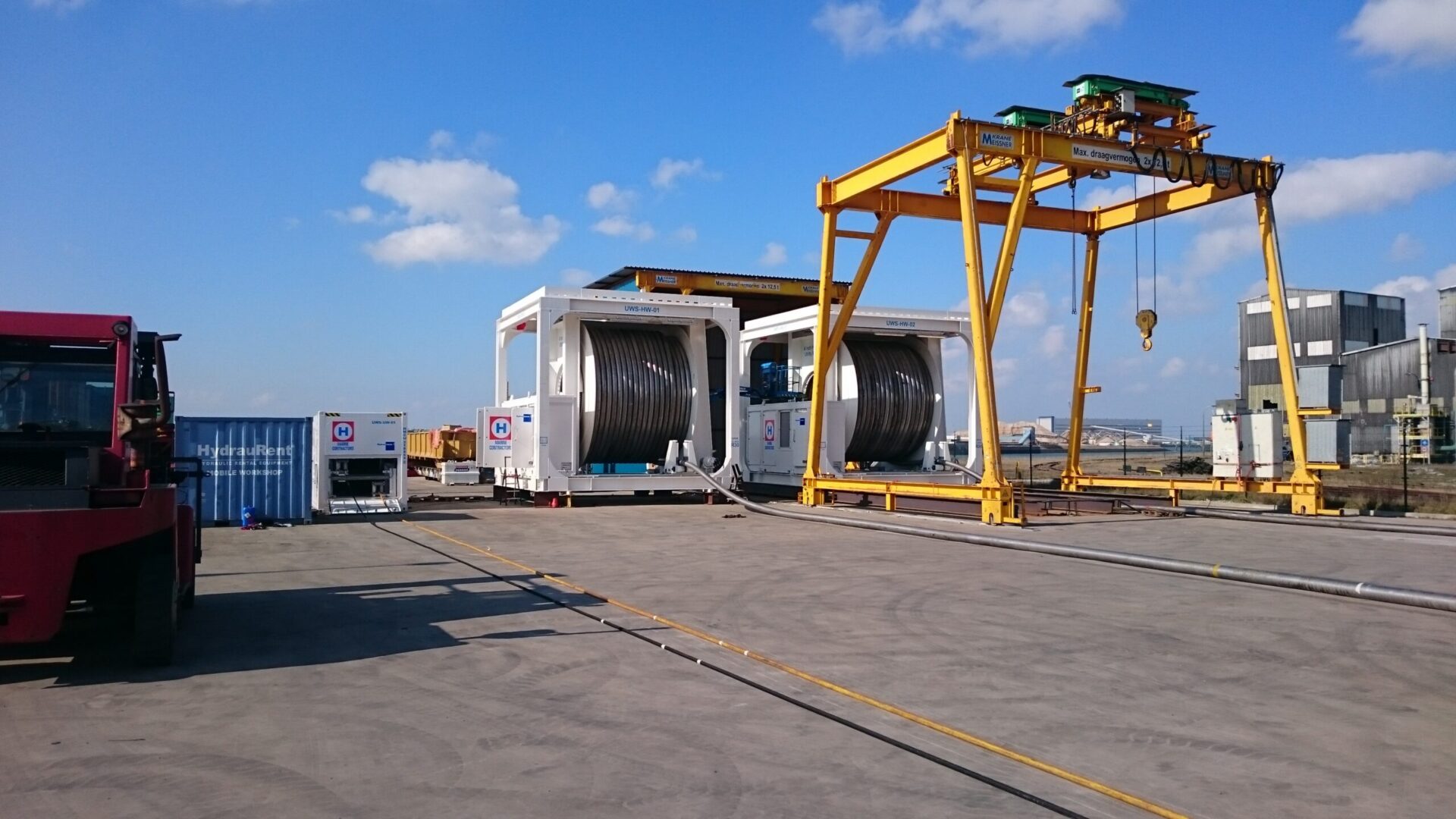

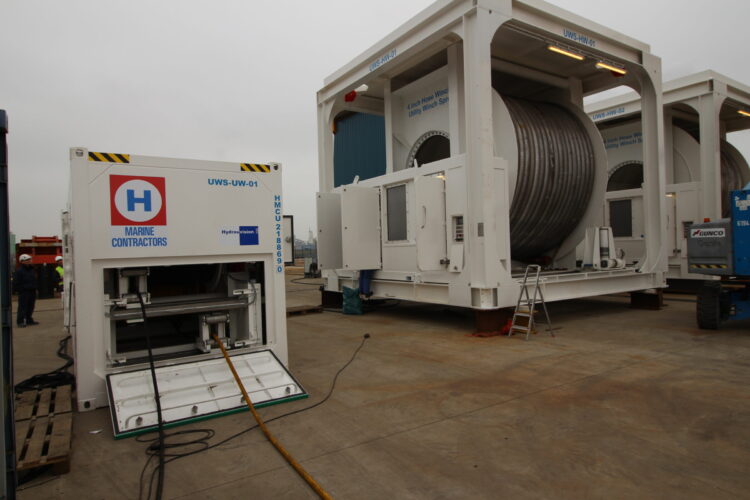

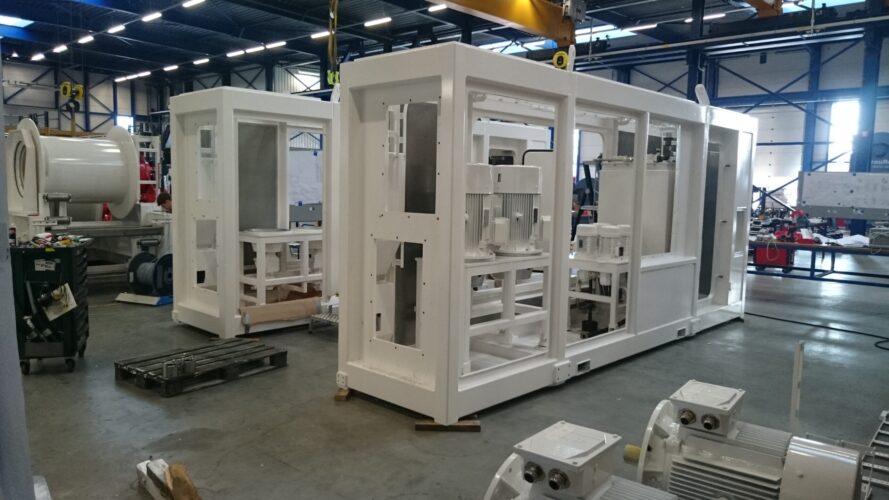

Hydrauvision Systems designed and built two winches with a total end weight of 120 tons each. The support winches are designed to fit into a 20-foot HC container, including the HPU. Our knowledge of hydraulics and controls enabled us to create a design in which the individual winches can be operated at equal speed by means of a central control panel. This means that the winches are fully synchronized. The winches and container are built in conformity with the latest offshore requirements: DNV Standard 2.7-3 Portable Offshore Units, DNV Standard 2.7-1 Offshore Containers, Code for Lifting Appliances in a Marine Environment and CSC. Hydrauvision Services assisted with the operation of the set during the client’s first project. HydrauRent provided the hydraulic capacity for the hydraulic hammer the client used in its first project. 2 HydrauPacks 500+ were used for this purpose. A control loop for the oil flow to the hammer was also specifically designed for this project.
